Same transducer as above however it also includes a paddle wheel speed sensor.

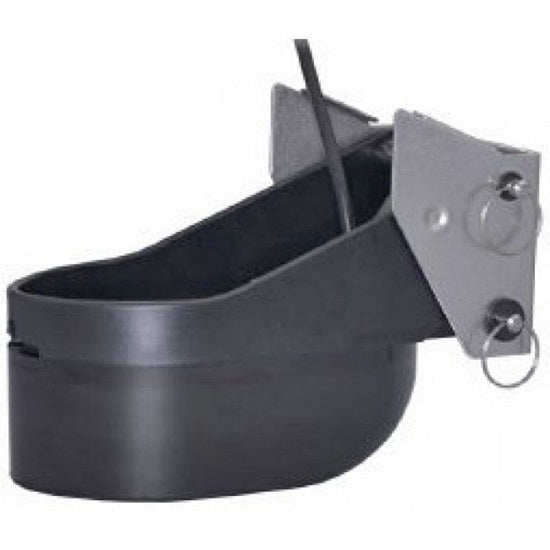

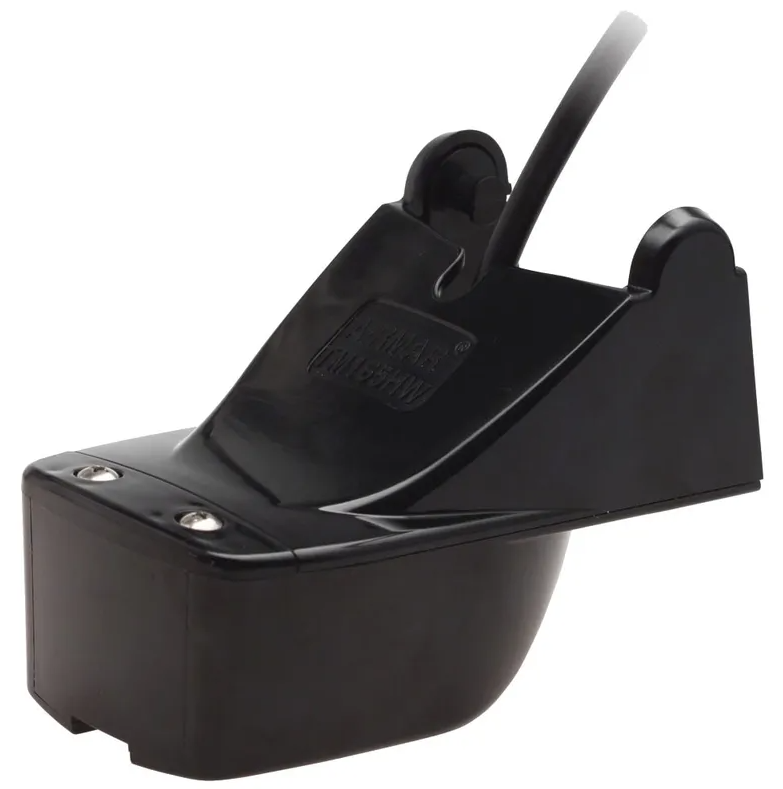

Select this transom mount transducer and you will have the ability to read surface water temperature as well as a total depth capability of 150+m plus depending on water clarity and conditions. It features a 50/200 kHz, dual-frequency, single-ceramic element and has a beam angle of 11 degrees at 200KHz and 45 degrees at 45KHz. Dimensions are 70mm wide X 105mm high X 158mm deep.

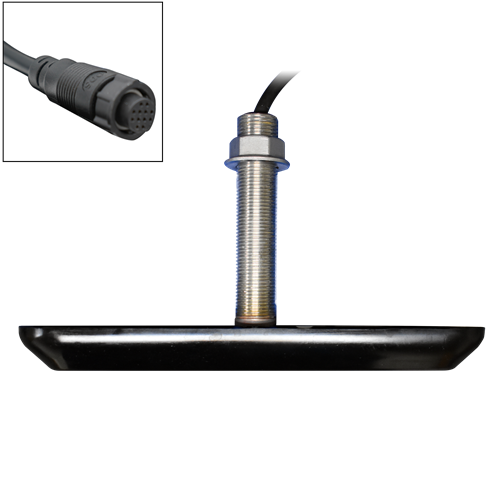

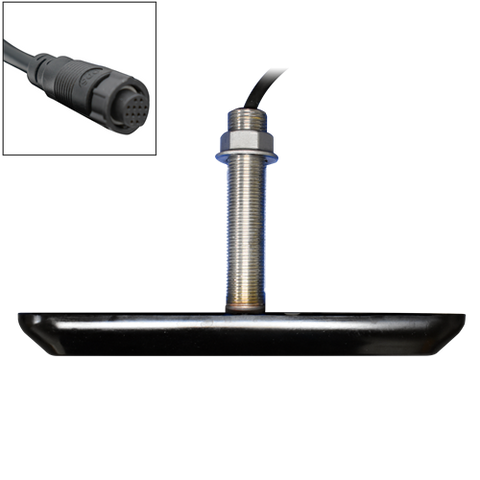

The 225T-SS904 is a Thru-Hull transducer that works with the built-in Side-Scan functionality on your NavNet TZtouch E and NavNet TXT 4XL. It has 150 watts on each side, CHIRP 220-240kHz operating range, Stainless Steel Thru-Hull rod with Temperature and a 12m (40ft) cable. Dimensions are 50mm wide, 270mm long and 30mm high. The threaded post is 120mm long and 24mm diameter.

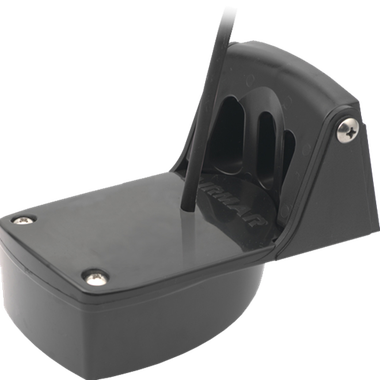

The TM150M is a transom-mounted CHIRP transducer designed for sportfishing. Featuring single-channel Medium CHIRP, it delivers the perfect balance between the deep water penetration of Low CHIRP and the sharp target resolution of High CHIRP, making it ideal for versatile fishing conditions. Dimensions are 70mm wide X 80mm high X 120mm deep.

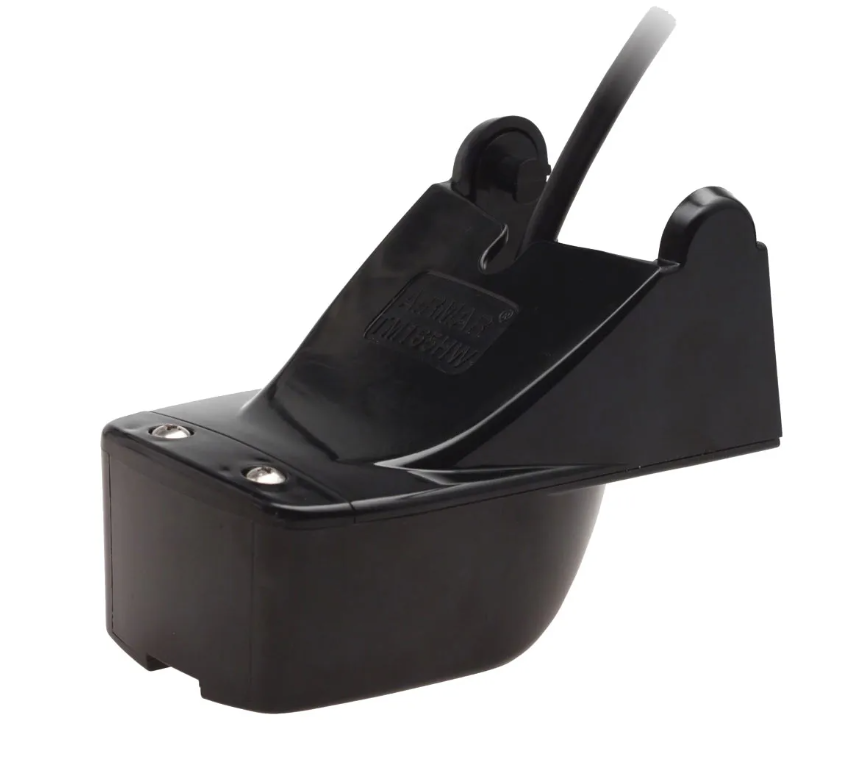

The TM165HW features a high-frequency range of 150-250 kHz and a super wide 30° average beamwidth, providing maximum coverage across the frequency band. In addition to improving the performance of CHIRP-capable Fish Finders, anglers using this new wide beam transducer will achieve three times the coverage under the boat. Wide beamwidth, together with the high-frequency range, provides vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with a narrow beam transducer. The TM165HW's new wide beam format also creates crisper and larger return images on the display. Dimensions are 70mm wide X 80mm high X 120mm deep.

The Furuno TM185HW (High Wide) Transom Mount CHIRP Transducer enables bottom detection down to 300m+ with 5 to 10 times greater detail. The TM185HW Resolution is so precise it’s possible to distinguish between individual bait fish, game fish, and underwater structures. It operates between 150-250KHz at a 25 degree beamwidth. Unit is approximately 137mm wide, 260mm long and 160mm high.

The re-designed TM260 sports a new look and better high-speed performance. The industry's first, 1 kW, transom-mount transducer has a new, rugged, mounting bracket. The sleek design makes the unit easier to install. And its streamlined shape will give you improved high-speed performance up to 30 knots (35 MPH). The TM260 will make 600 W sounders respond like a more-powerful model. Get 16-times the sensitivity compared with a standard transom-mounted transducer. It packs four, 50 kHz/200 kHz elements to focus narrow beams at both frequencies, so you'll see crisp targets and clear bottom definition. Unit is approximately 100mm wide, 190mm long and 75mm high.

The TM265LH transom mount transducer is a 1kW Multi Frequency transducer operating in the 42-65kHz Low range with a Beam width of 16 degrees to 25 degrees and 130-210kHz High range with a beam width of 6 degrees to 10 degrees. It provides precise separation between bait fish and game fish and includes the temp sensor. Unit is approximately 135mm wide, 260mm long and 170mm high.

Get more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25° Beamwidth, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducers. A unique property of the new high frequency transducers is that the Beamwidth is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered. Unit is approximately 135mm wide, 260mm long and 170mm high.

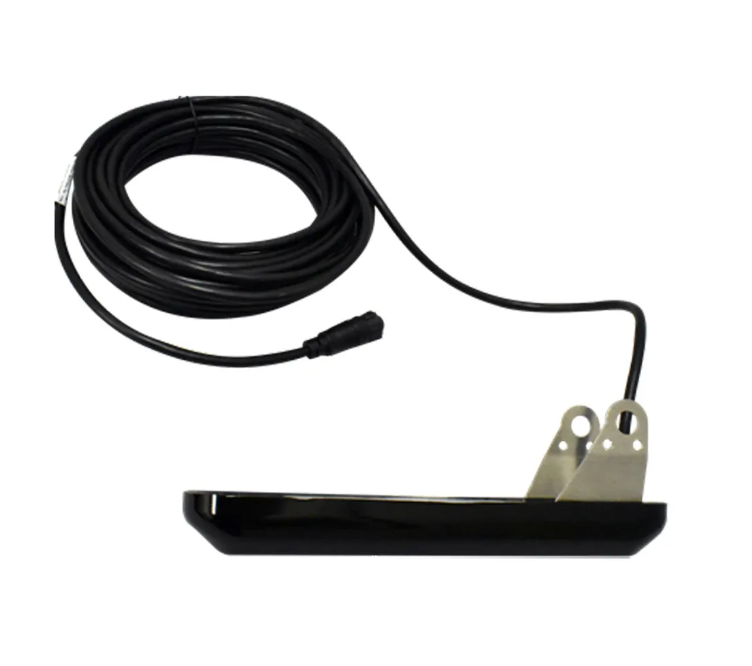

The 225T-TM904 is a Transom Mount transducer that works with the built-in Side-Scan functionality on your NavNet TZtouch E and NavNet TXT 4XL. It has 150 watts on each side, CHIRP 220-240kHz operating range, Stainless Steel transom bracket and Temperature. Operating at a lower CHIRP frequency of 220–240kHz with 150 watts of power on each side, it is optimised for maximum side-scan range — seeing structure and targets up to 750ft (230m) either side of the vessel, at depths beyond what higher-frequency units can achieve. The urethane housing is built to withstand the marine environment, and the transducer comes ready to install with a mounting bracket, hardware, and a 12-metre cable included as standard.

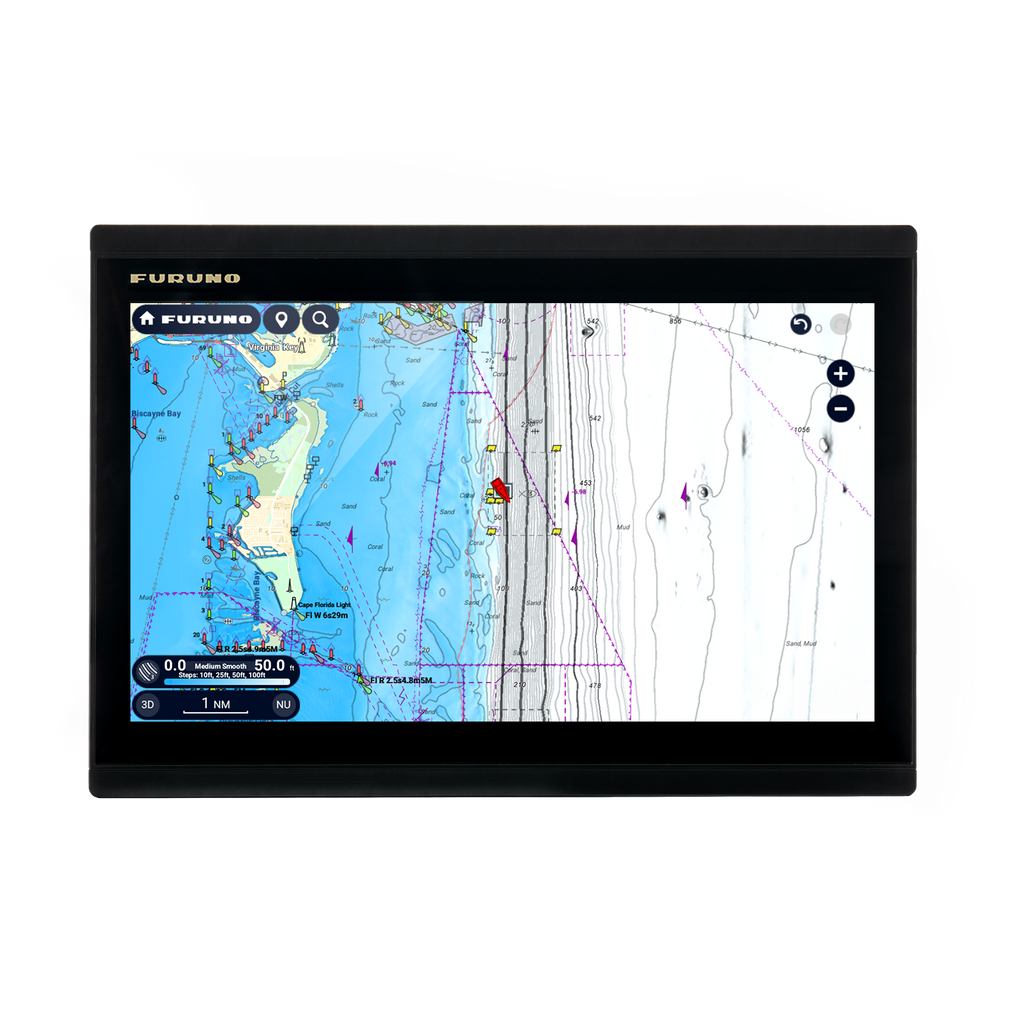

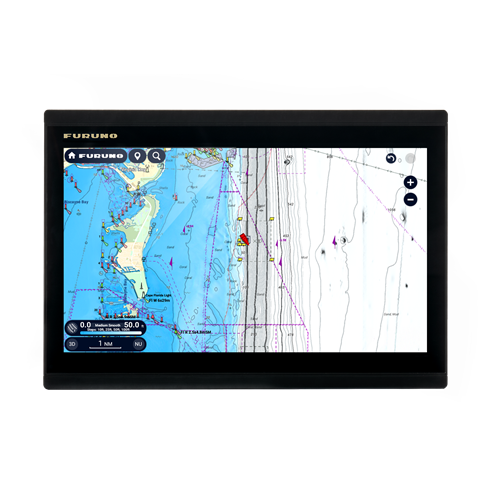

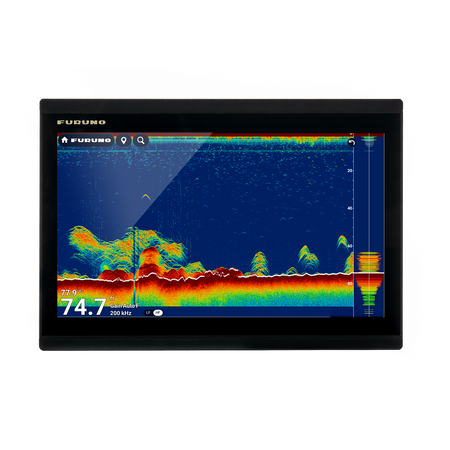

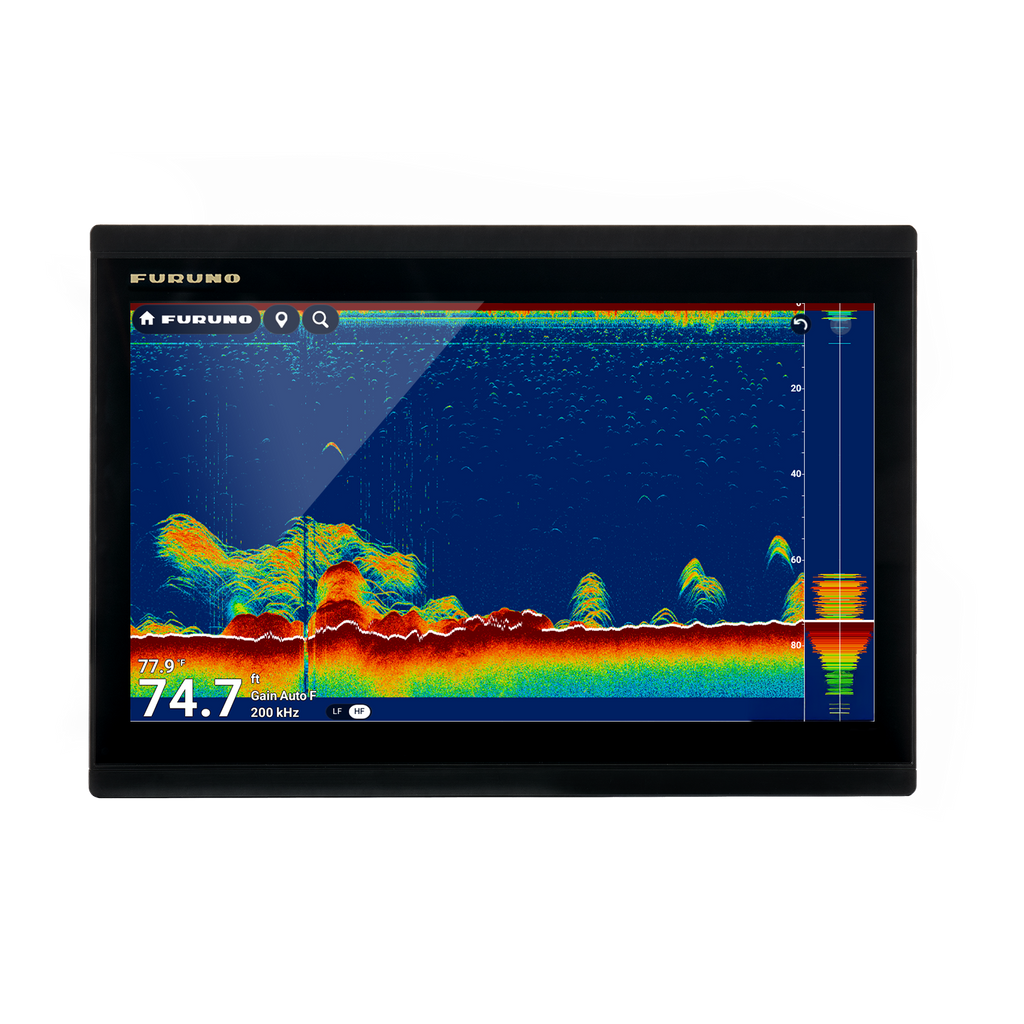

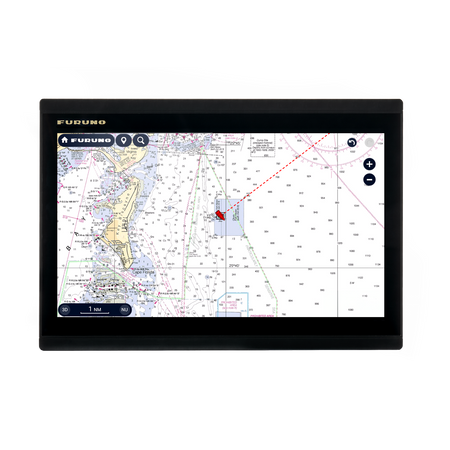

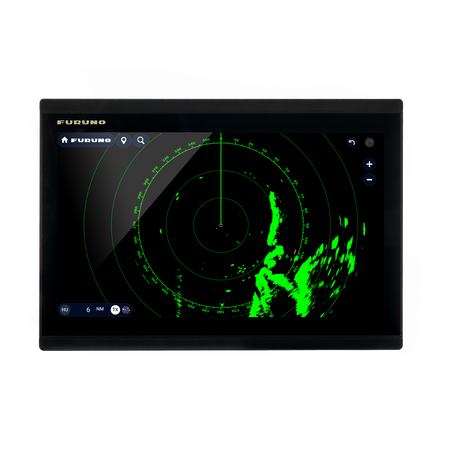

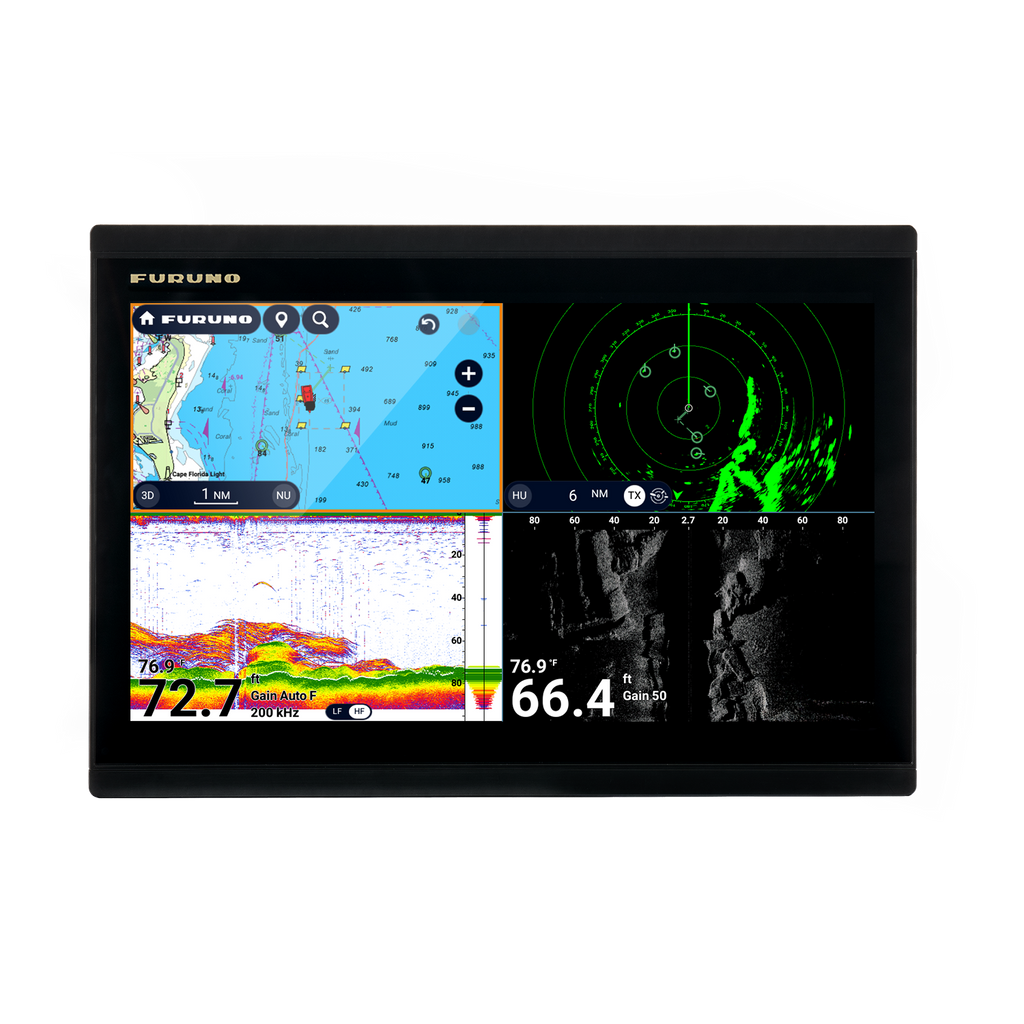

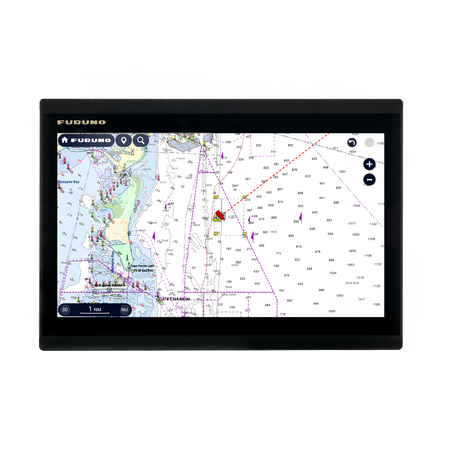

Read this 1st - The TZMAP 13 is the big brother to the 9" above. All specifications are the same except you get it all in a larger screen. Both the 9" and 13" can be flush or bracket mounted and come with a protective rubber screen cover. You download your required map online once you have the unit.  They can be flush or bracket mounted and transducers are purchased additionally below. If you need help with transducer selection then call the accessories department on (02) 9546-1324 or email accessories@huntsmarine.com.au

For the full Furuno TZMAP brochure click here.

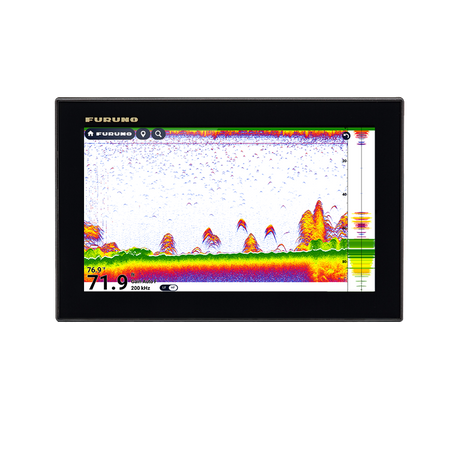

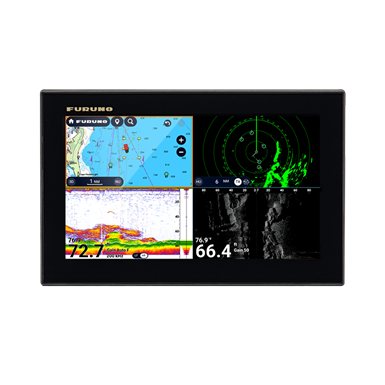

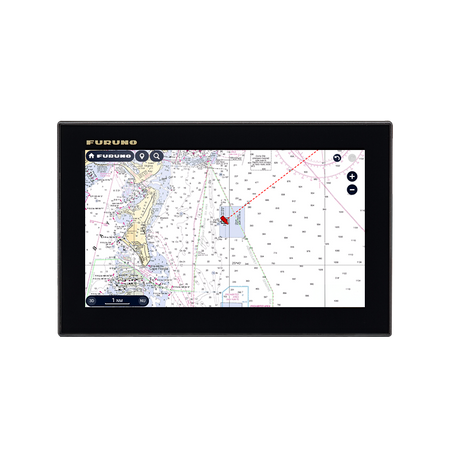

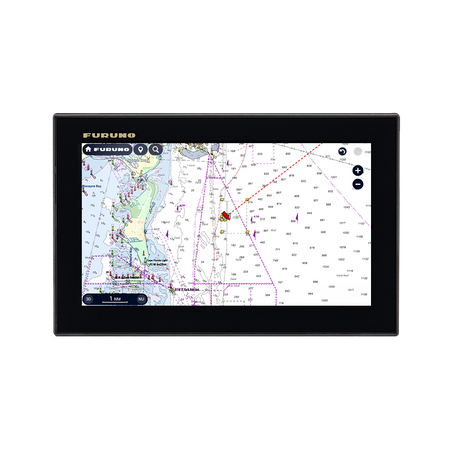

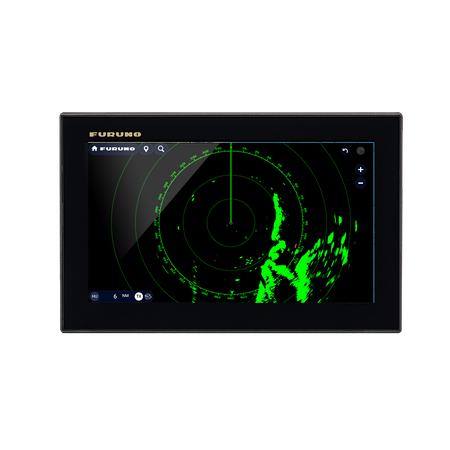

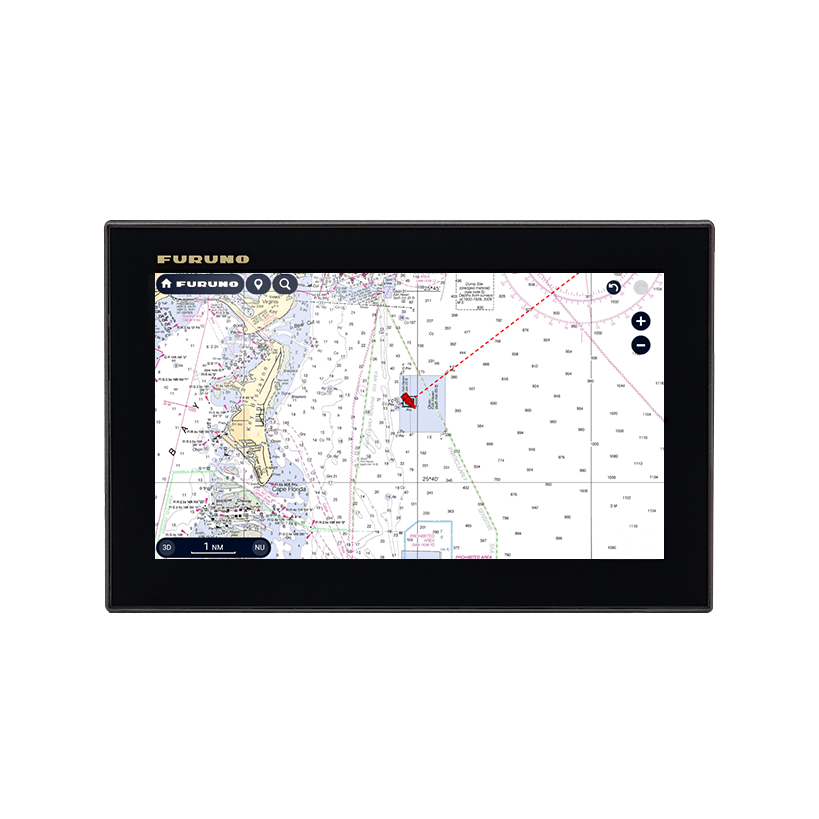

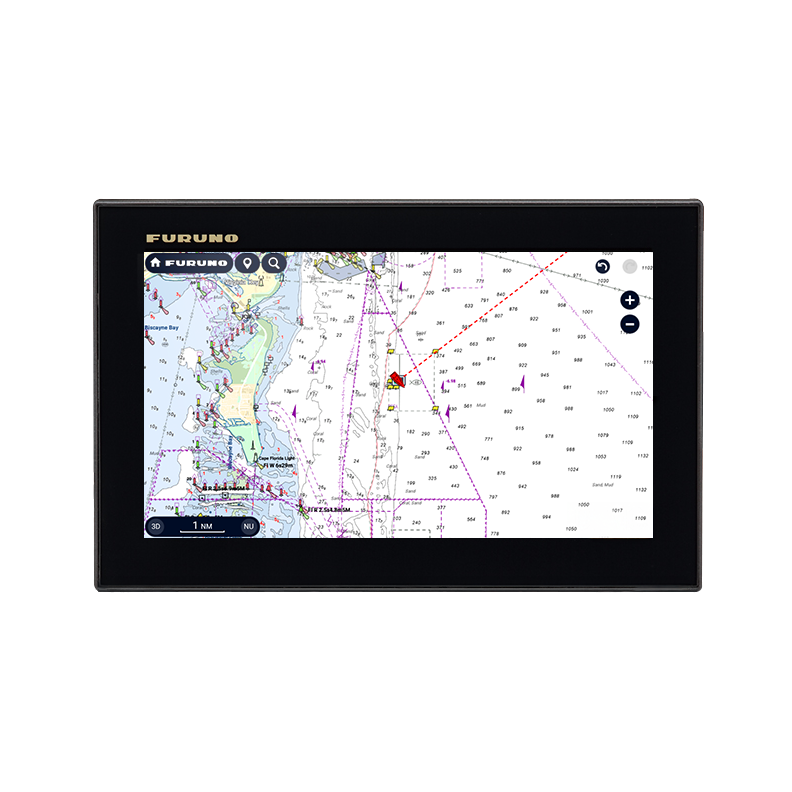

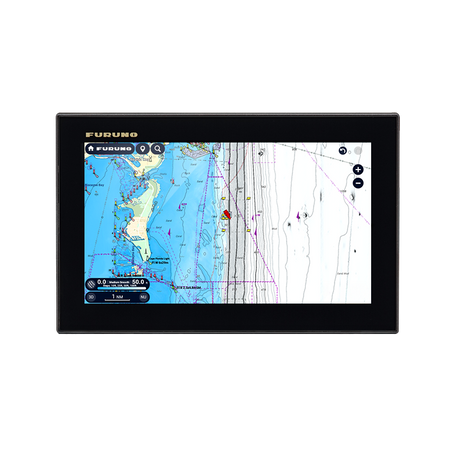

Read this 1st - Whilst you can run a single chirp transducer with the TZMAP 9 and 13 they are primarily designed to be used as a separate mapping unit. The TZMAP9 and TZMAP13 all-in-one Chart Plotters are designed for boaters who demand reliable navigation and industry-leading charts in a simplified, easy-to-use package. These capable stand-alone MFDs put TZ MAPS, the most powerful charting available, right at your fingertips. All dimensions are in the brochure link just below. You download your required map online once you have the unit.  They can be flush or bracket mounted and transducers are purchased additionally below. If you need help with transducer selection then call the accessories department on (02) 9546-1324 or email accessories@huntsmarine.com.au

For the full Furuno TZMAP brochure click here.

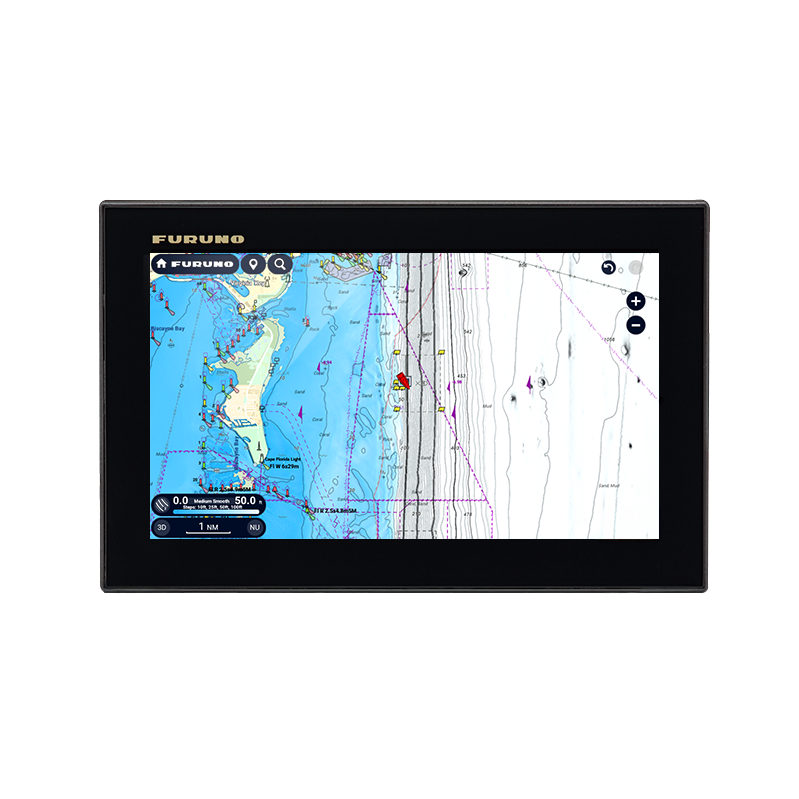

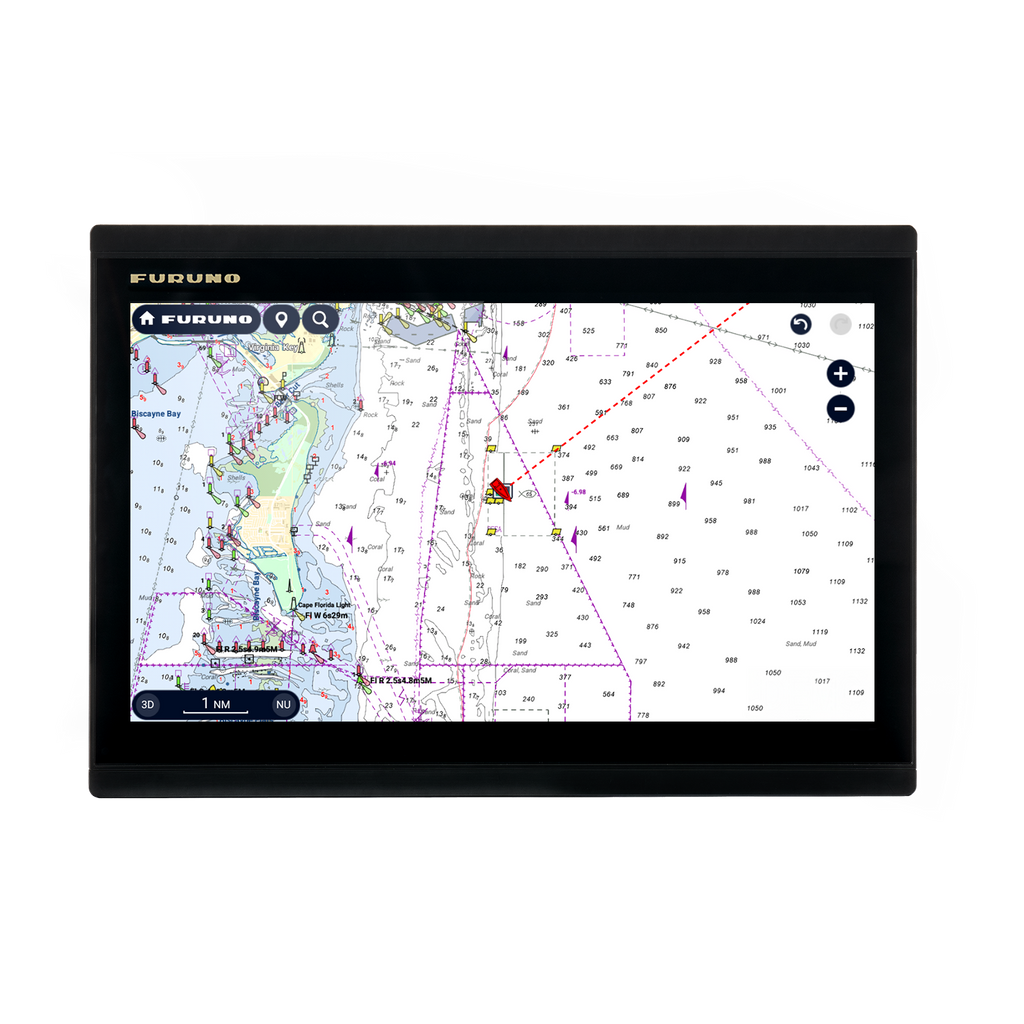

With TZ MAPS, navigators control what map data they want to download, such as incredibly wide chart areas, satellite photos, and bathymetric data. Custom depth color shading and bathymetric data overlays create navigational charts of unmatched detail and clarity, rendered with a variety of color themes to provide an electronic charting experience that goes far beyond any premium chart service before it. You can create your own custom objects or make updates to charted objects, such as buoys, so when they move from their previously charted positions, they can be updated on the system on the fly. Custom user objects can be shared with other registered TZ MAPS users through TimeZero's new moderated service, and can be turned on and off in the Layers menu, available with a single edge swipe up from the bottom of the display. Purchase of any TZ MAPS area also unlocks added functionality, such as powerful AI Routing that intelligently plans out routes, taking into consideration the boat's draft as well as charted depths and navigational obstacles. Purchase any TZ MAPS chart directly from the chart plotter to unlock those charts in the free TZ iBoat app for mobile devices such as a phone or tablet, providing you with a free home planning app. With a free TimeZero account, waypoints and routes can be easily backed up or retrieved from the cloud with just a few taps, ensuring all the data you’ve worked so hard to create remains safe and secure.

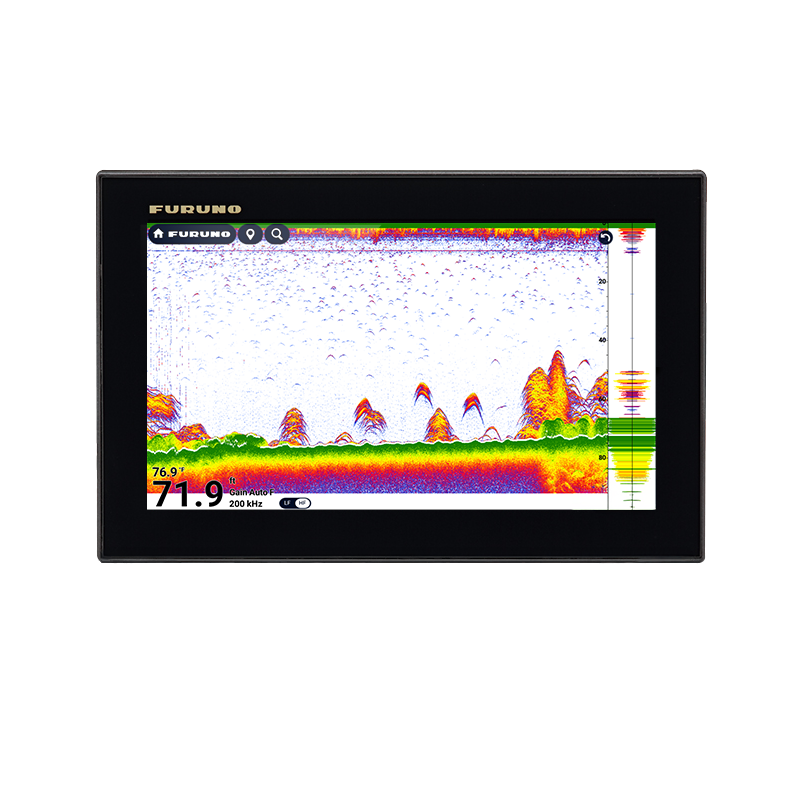

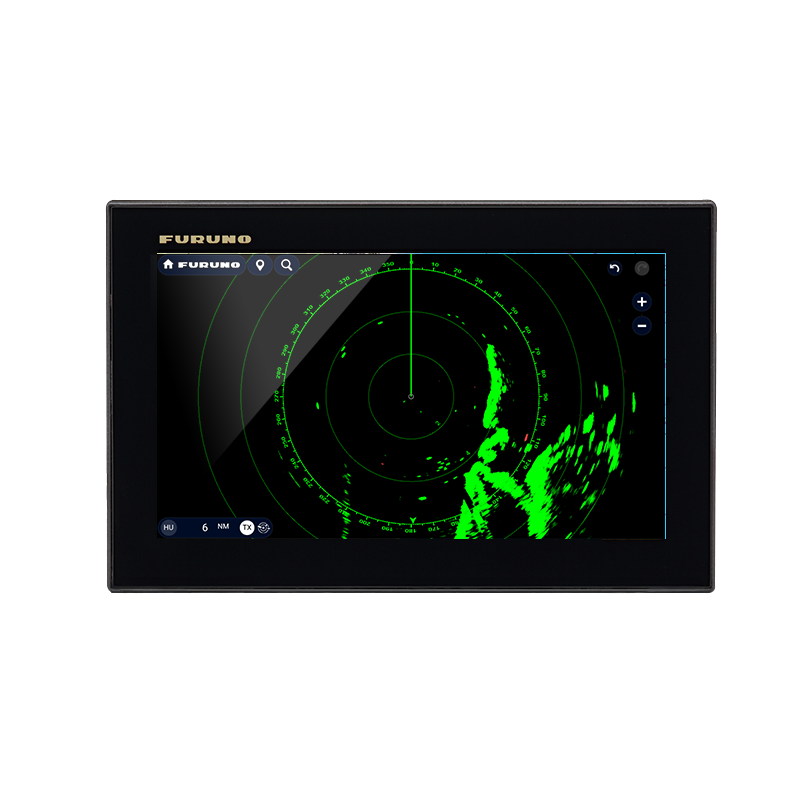

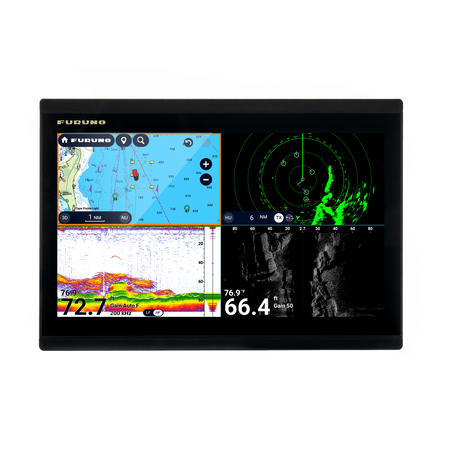

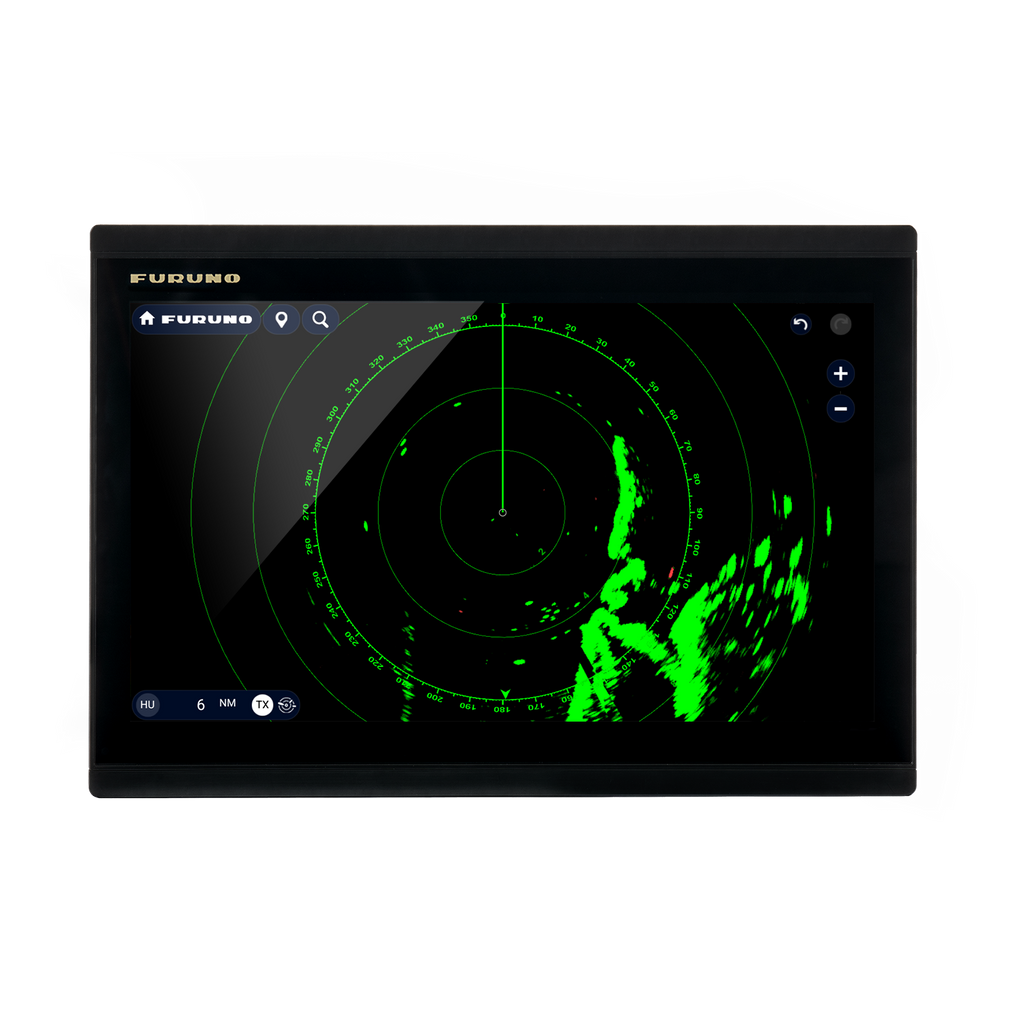

TZMAP offers the ultimate combination of simplicity, power, and precision, all in a stand-alone unit. With built-in TruEcho CHIRP Fish Finder technology, CHIRP Side-Scan, Radar compatibility, and the capabilities of TZ MAPS, you’ll have the best of the big-boat features in a compact, accessible package. The TZMAP series helps you navigate smarter, fish better, and go farther – all with Furuno performance you can trust.

We don't normally advertise books but this is a good one and worth a read. This evidence based book explains how colour echo sounders work, how to operate them and how to interpret the information recorded on the display monitor. Packed full of over 130 images including screen captures, diagrams and full colour photos, this easy to read and understand book will help even the most experienced fisher gain more from their colour echo sounder/fish finder. John Adams comes from a seafaring family where all the men went to sea, serving on merchant ships, deep sea trawlers, or whalers.

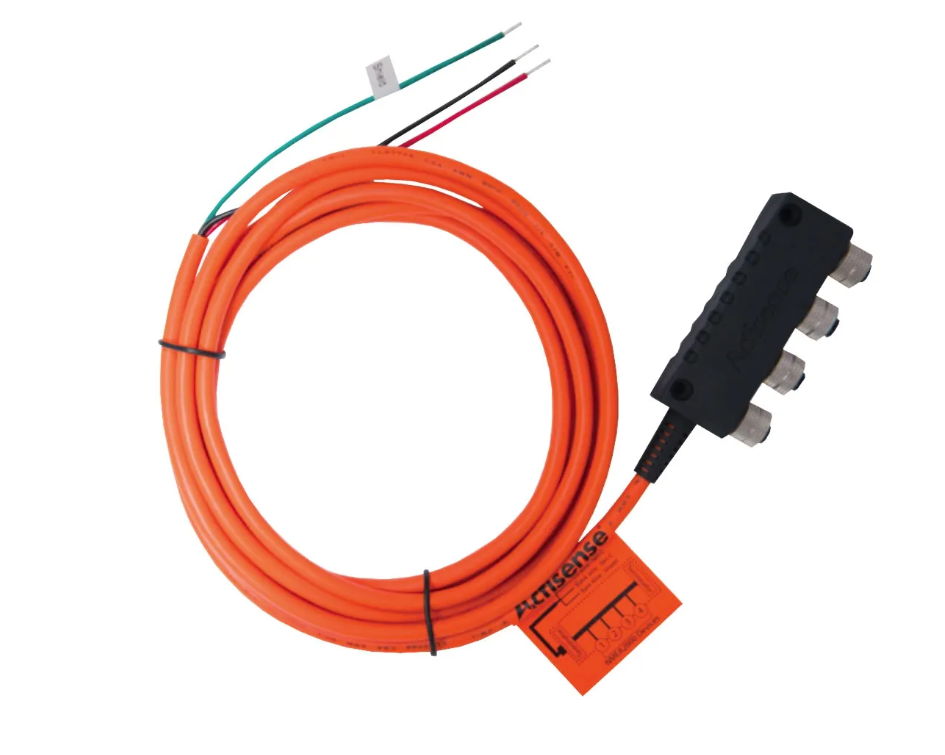

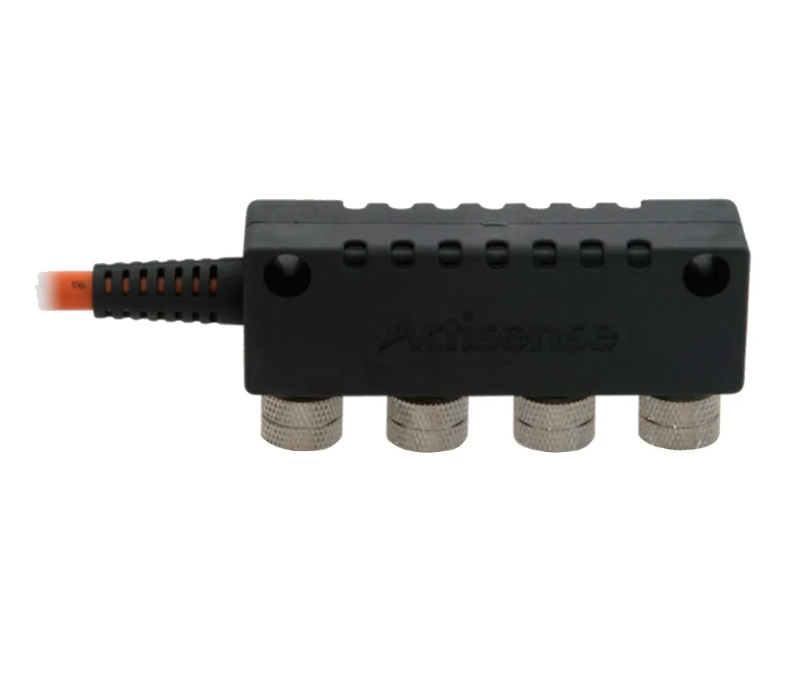

A complete NMEA 2000 backbone in a single device. Installing small NMEA 2000 networks is quicker and easier than it’s ever been with the Small Boat Network (SBN) from Actisense. The equivalent of four T-pieces in a single case provides a significant time and space saving with no more connecting multiple T-pieces together. Termination resistors are built in which increases the saving on time and space. Once the attached 3 metre cable is connected to the boats power supply, an NMEA 2000 network for up to four devices is ready to use, taking ‘plug & play’ to the next level.

Over 3000 GPS marks around Australia (coast and offshore) plus how to use a GPS tips and tricks. GPS Fishing Marks Australia Wide is an invaluable companion to all anglers-it is the complete guide on how to understand, use and get the best from your GPS, then it tells you where to find the hottest fishing spots around Australia. Almost every angler who fishes on the water around Australia either uses a GPS (Global Positioning System) or wishes they did! However, many users find mastering their GPS difficult. Using these instructions the GPS enables anglers to determine their latitude and longitude out on the water as well as helping them to navigate a boat to a particular set of co-ordinates.

Formulated for use on all marine electronics, both touchscreen and non-touch, and all plastics. It contains PTEF polymers that provide a protective barrier and help protect against U.V. damage. Removes and help prevents fingerprints, dirt, dust and salt deposits. Great for sunglasses, phones, tablets and more.
