See more: Electronics

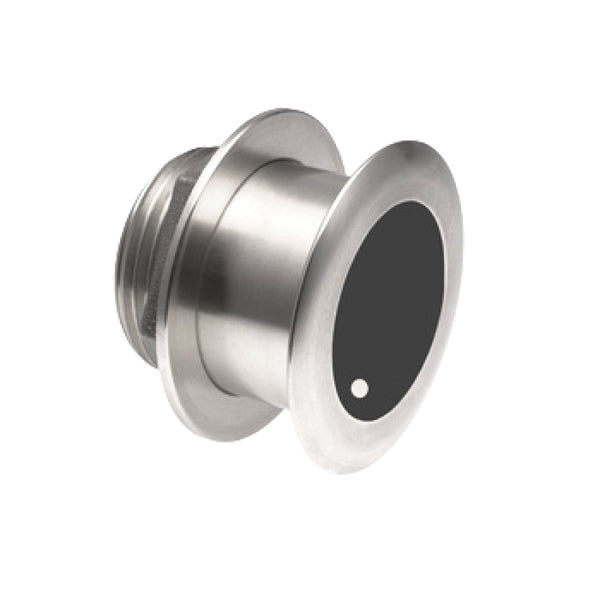

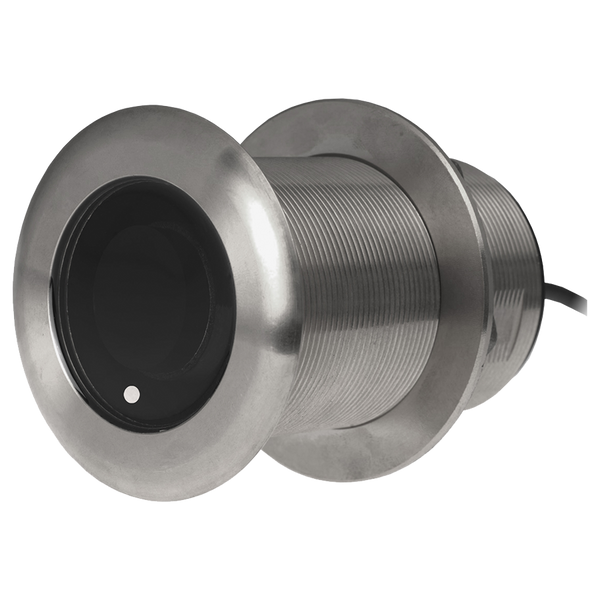

Furuno 1kw SS175HW Stainless Steel CHIRP Thru Hull Transducer with Temp - 3 Angles
$2,200.00
This has a 10 Pin plug and suits all Furuno units above EXCEPT the new TXT4XL models which are 12 pin. There are the 2 main 12 pin transducers listed further down that suit these models. You can get a 10 to 12 pin adaptor but please call on 9546-1324 to discuss your needs and confirm suitability.
$2,200.00

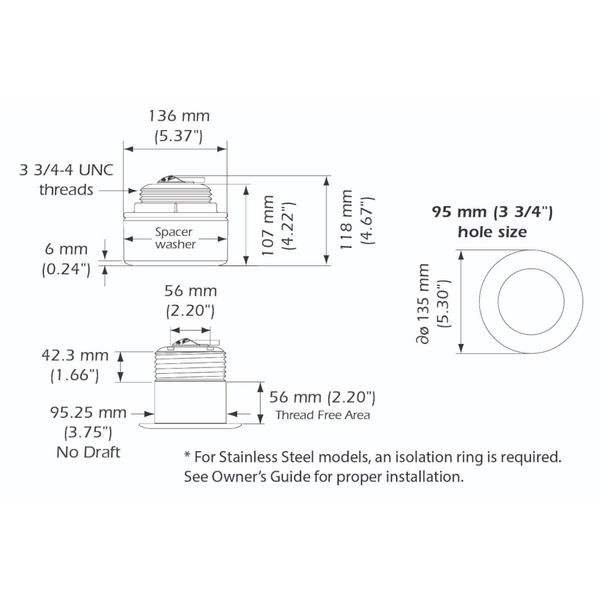

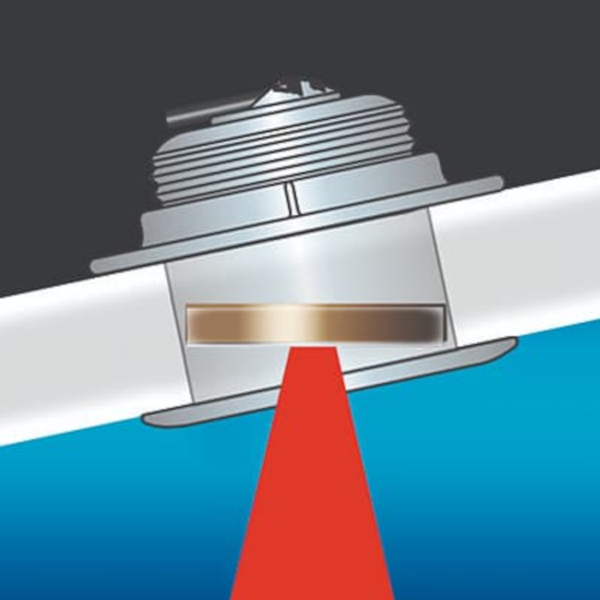

The SS175 is available in three Tilted Element models: Fixed 20° tilted version for 16 to 24° hull deadrise angles, Fixed 12° tilted version for 8 to 15° hull deadrise angles and Fixed 0° tilted version for 0 to 7° hull deadrise angles. This CHIRP stainless steel thru hull transducer with water temperature has a choice between 0, 12 and 20 degree offset angle designed to suit almost all boats. It is 134mm in diameter and 118mm tall. Frequencies are between 130 – 210 kHz operating on a 25 degree beam to give you a usable depth of 300m plus. Full dimensions are in the last image.
Got a question? Phone the accessories department on (02) 9546-1324 or email accessories@huntsmarine.com.au
You might also like
X
Replacement Handset for GME GX700 - Black or White
$75
$75
Available in black or white, this is the genuine replacement handset for the GX700 above.
Brand:
GME
SKU: MC616W
X
GME GX700 VHF Marine Transceiver - Black or White
$245
$245
The GME GX700 is a high performance VHF FM radio designed to operate in the 156 – 163 MHz marine band. With a number of enhanced features including fully user programmable Channel Scanning, Dual Watch and Triple Watch functions and two programmable ‘instant’ channel memories, the GX700 is ideal for use on all vessel types. Available in white or black, the GX700’s additional rear microphone input gives the user the option of running a 5m or 8m extension cable to any convenient location on the vessel. By adding the waterproof blanking plug to the front mic input this setup is ideal for ‘above windscreen’ installations in Hard-Top vessels. Supplied in the box is the VHF Radio, Mounting bracket, Microphone bracket, Power lead and Cover.
Brand:
GME
SKU: GX700W
X
AE312V Ground Dependent 450mm VHF Antenna
$59.95
$59.95
This is the aerial that is used on almost all Quintrex boats and the detachable whip is 450mm high. Being ground dependant the antenna base needs to be in contact with a metallic surface such as steel or aluminium of approximately 0.5 square meters or greater. It is supplied with a 4m coaxial cable and quick fit socket.
Brand:
GME
SKU: AE312V
