Fish Finders by Garmin

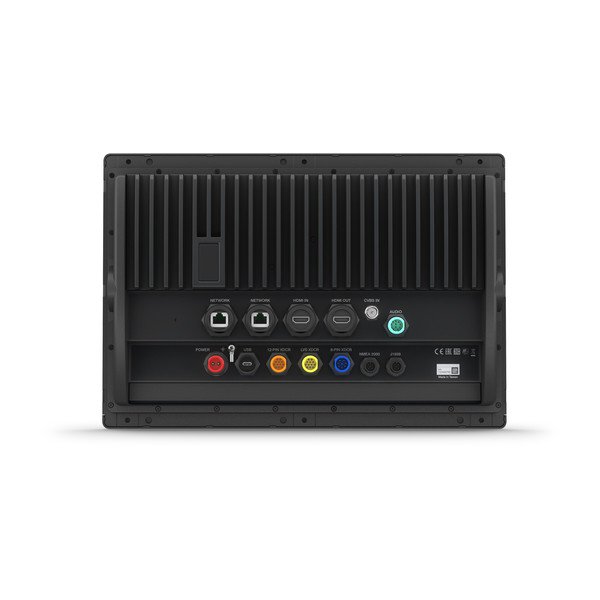

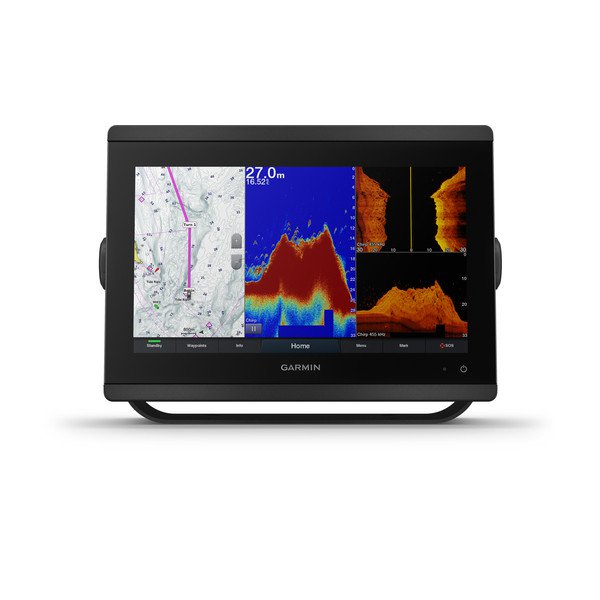

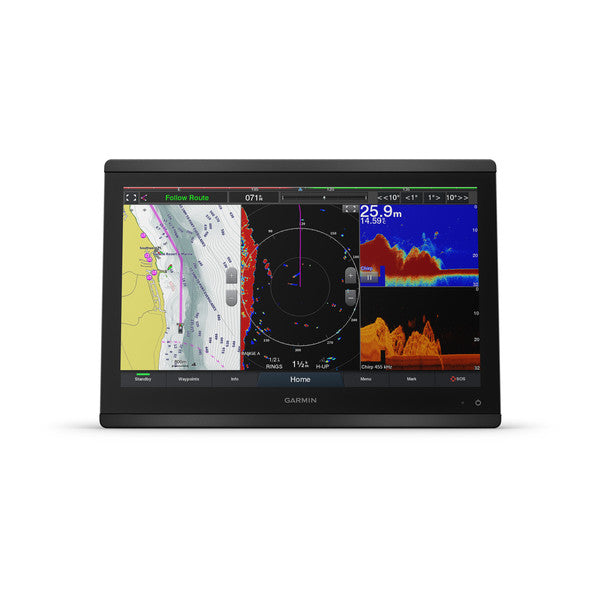

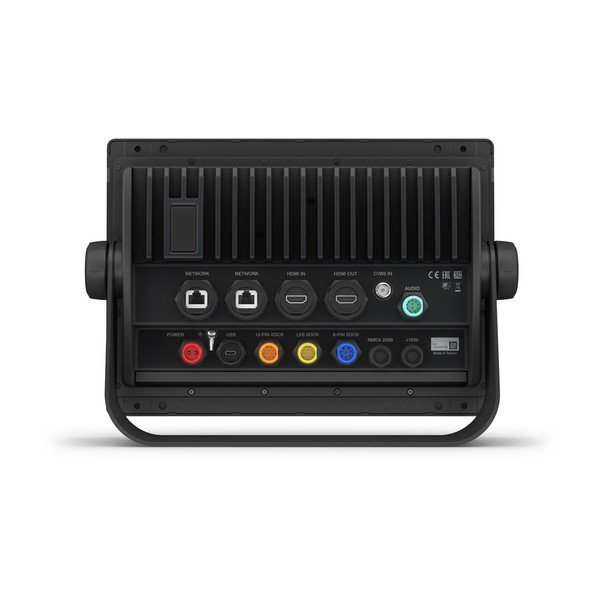

The Garmin full network capable 8400XSV range consists of the, 8410, 8412 and 8416 and the difference between all three is just the size of the flat HD IPS touchscreen display. You can get either 10, 12 or 16 inch and all three can be either bracket or flush mounted. They are designed for sportfishermen, cruisers, sailors and sailing racers who demand high performance, ease of operation and feature integration in a chartplotter/sonar combo. They are beautiful widescreen multitouch fully networked devices with premium sonar and mapping functionality. All GPSMAP 8400XSV combos includes built-in dual CHIRP sonar plus CHIRP ClearVu and CHIRP SideVu scanning sonar with the clearest images on the water. They also support the entire Panoptix all-seeing trandsucer setup. It's internal 10 Hz GPS updates your position and heading 10 times per second. They are all fully network capable and supports radar, autopilot, instruments, multiple screens, FUSION-Link, sensors, remote sonar modules, digital switching, thermal cameras, grid rotary knob, joystick and keypad control and offers the conveniences of built-in Wi-Fi connectivity.

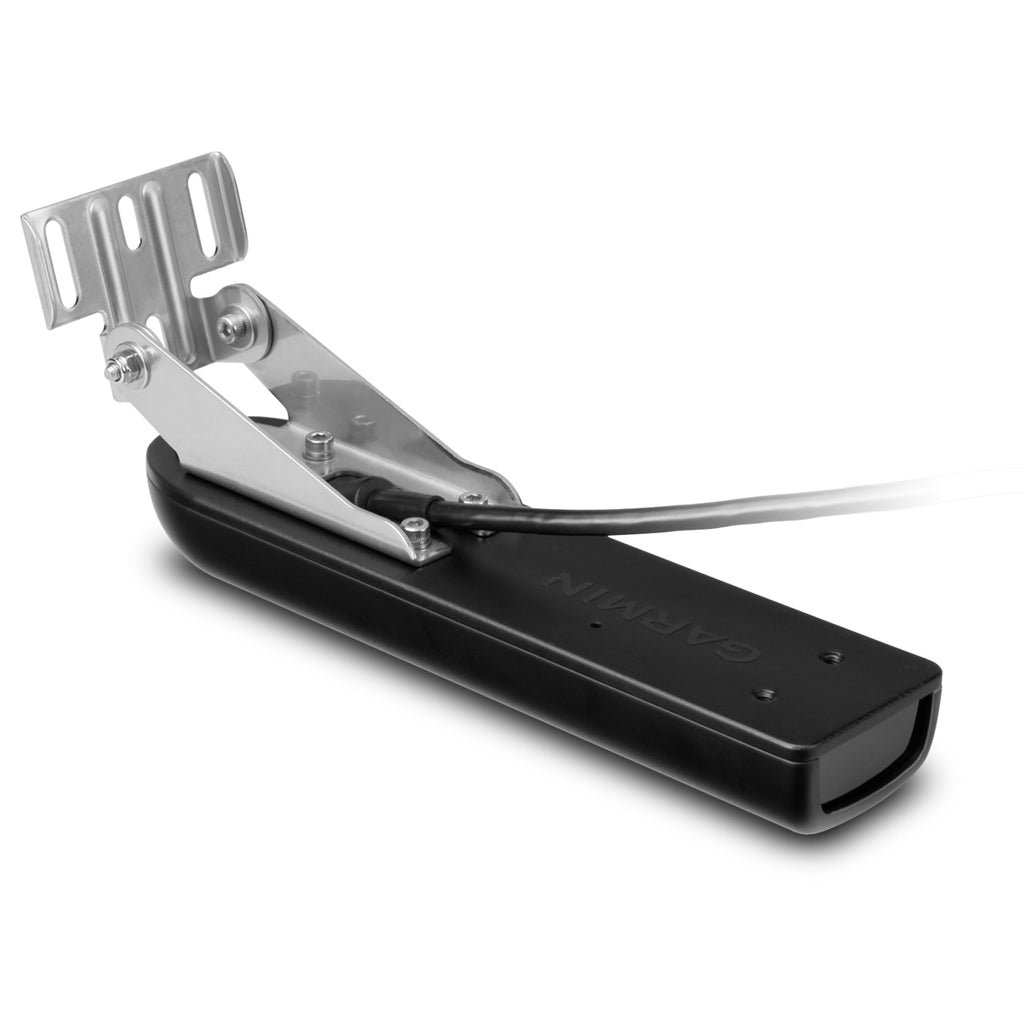

The Garmin GT23 TM suits the 752xs and 952xs and is a traditional CHIRP 600W transducer with 500W ClearVu. It is perfect for coastal and offshore fisherman who want CHIRP traditional sonar and ClearVu scanning sonar. This transom mount transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below the boat. It has temperature as well. It will read to about 500m traditional and 300m ClearVu.

The Garmin GT51 is a 600W transducer is a deep water version of the GT52 and also provides a super clear image of anything that passes to the side or below you boat. It has a traditional down sonar and CHIRP ClearVu and SideVu all optimised together for clearer imagery at deeper depths. The 600W down sonar operates on a 80 - 160 kHz frequency to give you a max depth of approx 500m and the 500W 260-455 khz CHIRP ClearVu to 300m and sideVu will read to approx 100m. It has a 12 pin connector on a 30ft cable and the water temperature sensor is standard. Dimensions are 228mm long, 62mm wide and 30mm high (excluding bracket).

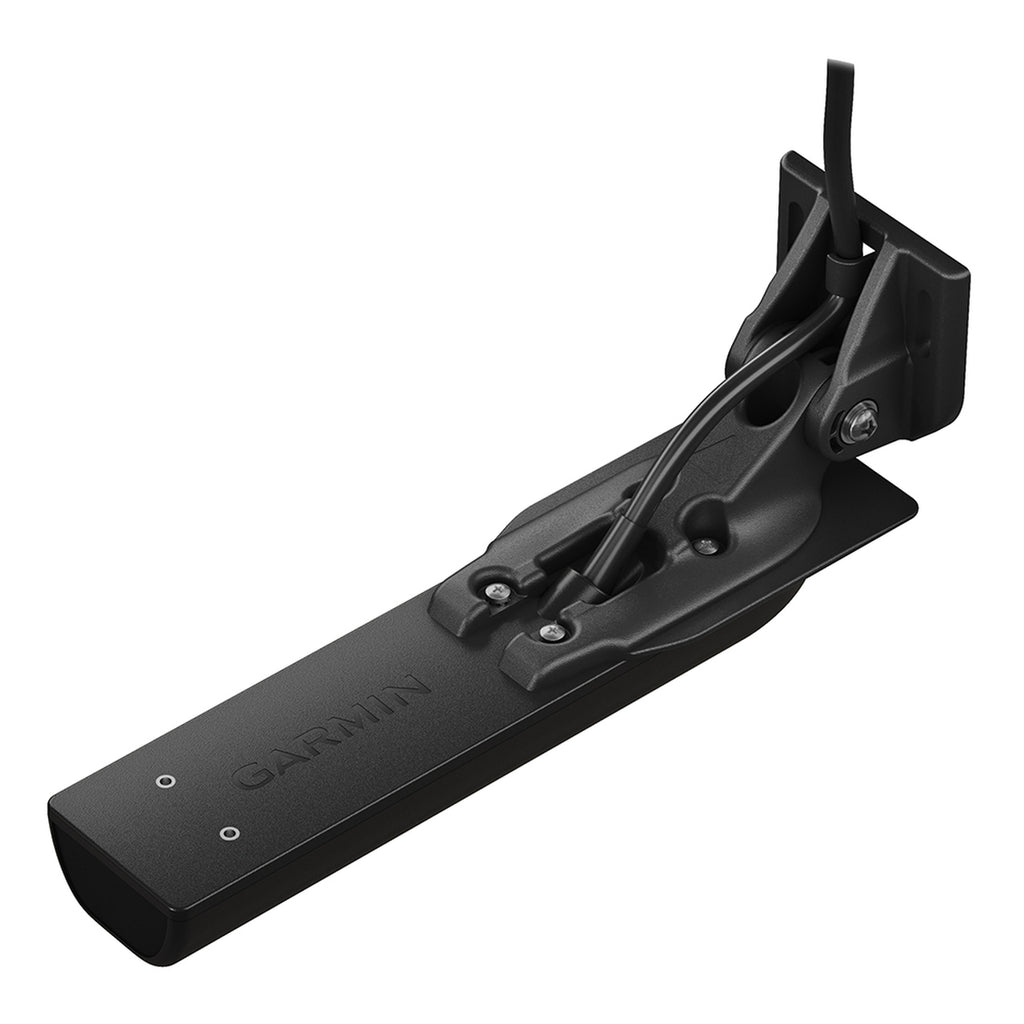

The Garmin GT56UHD-TM all-in-one transducer provides image details so clear and precise, you can actually see fish hanging just off branches of submerged trees, brush and rocks. You can see size differences between bigger and smaller fish and even see individual fish swimming in bait balls. You get the highest resolution ClearVu and SideVu scanning sonar images available plus amazingly clear high wide CHIRP traditional sonar. It shows you incredibly detailed images of fish and structure below your boat with three (455/800/1000 kHz) ClearVu frequency settings and three SideVu sonar frequency settings. Dimensions are 218mm long, 52mm wide and 28mm high (excluding bracket). Included in the box is the transom mount, trolling motor mount, 25ft cable and 12 pin connector.

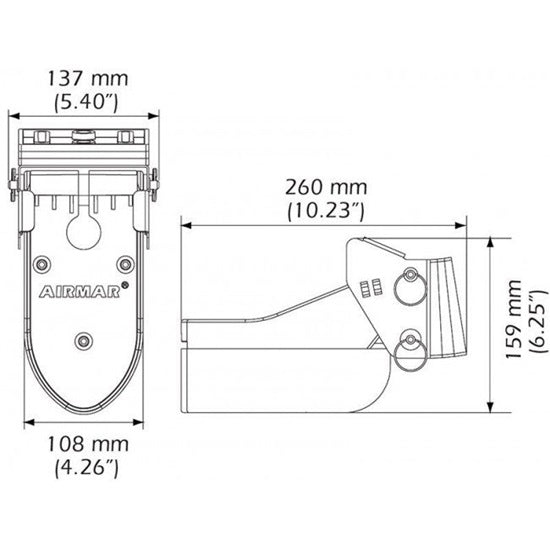

The Garmin TM256 LM is a 1 kW plastic transom mount transducer and performs well in deep water and provides exceptional bottom and water column detail. This best performing 1kW transom mount has a maximum depth of 900m, an operating frequency of 42 to 65 kHz and 85 to 135 kHz, a beam width of 16 to 25 degrees and mounts on a 3 to 21 degree transom.

Get more coverage under the boat with the new 12 Pin TM275LH-W widebeam CHIRP transducer. It includes the water temperature sensor and offers a high frequency range of 150-250kHz and a constant 25 degree beamwidth, this transducer is truly broadband at it’s best. In addition to improving the performance of CHIRP-ready echosounders, anglers using the new TM275LH-W wide beam transducer will achieve twice the coverage under the boat compared to Airmar's current high frequency CHIRP transducers. It's ideal for marking baitfish and game fish in shallow to mid-water depths of 300ft - 600ft. Low—CHIRPS from 42 kHz to 65 kHz 25° to 16° beamwidth. High—CHIRPS from 150 kHz to 250 kHz 25° constant beamwidth

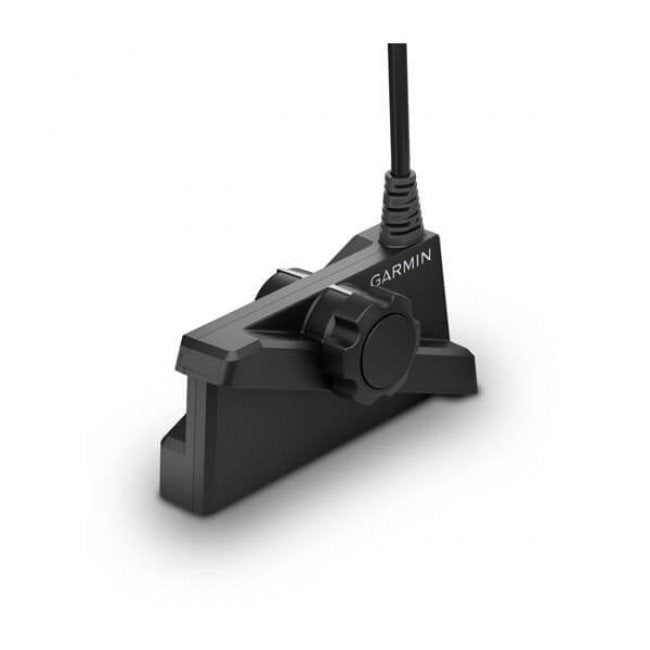

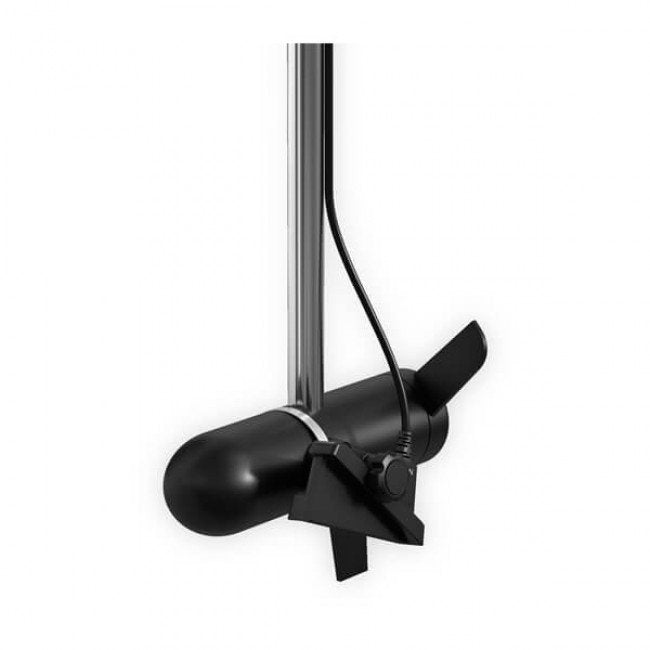

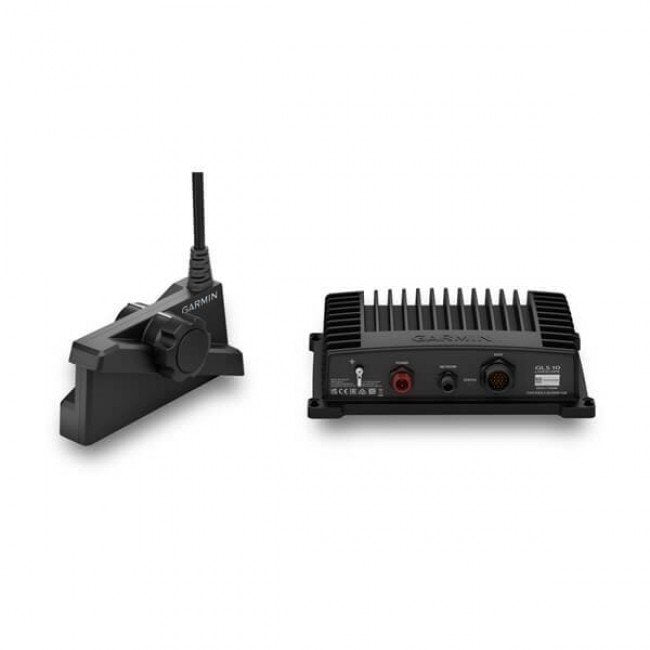

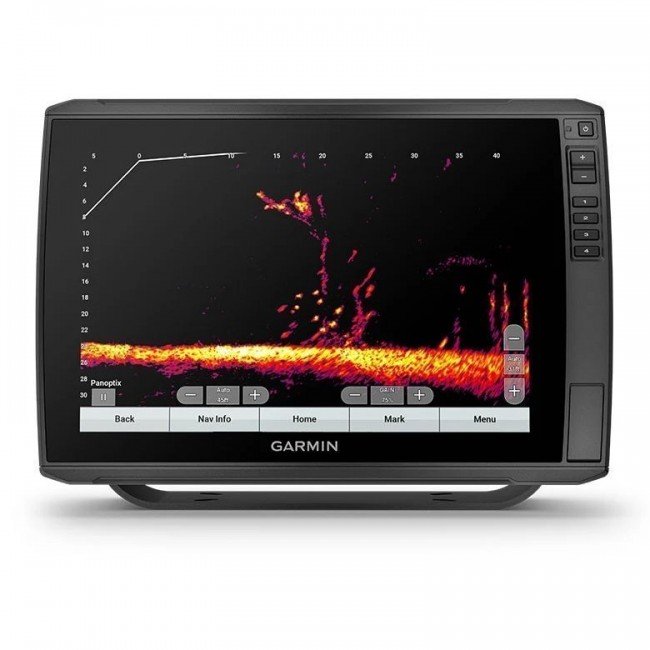

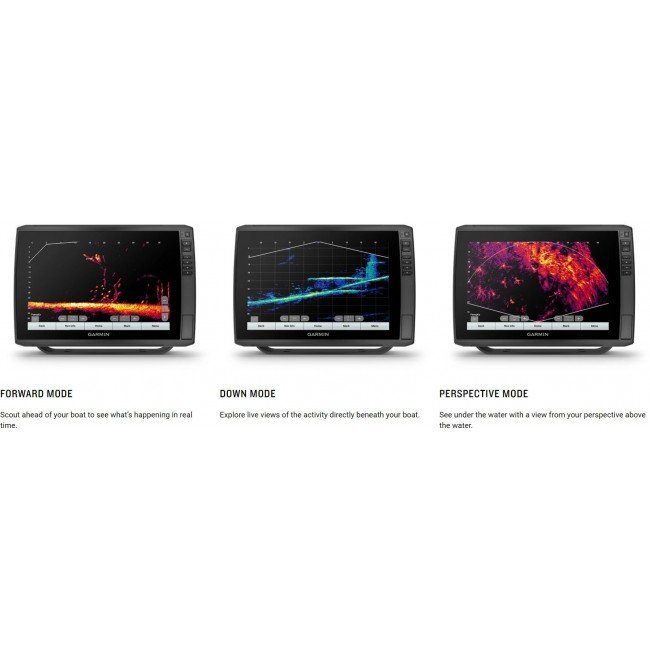

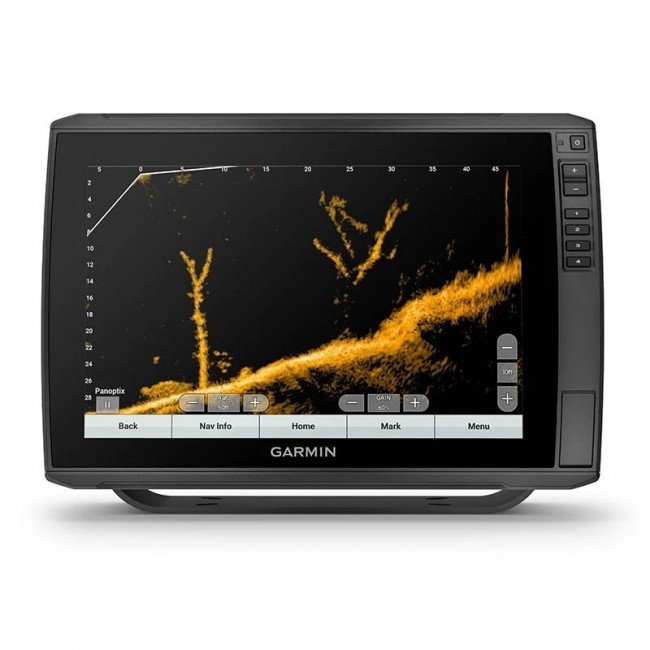

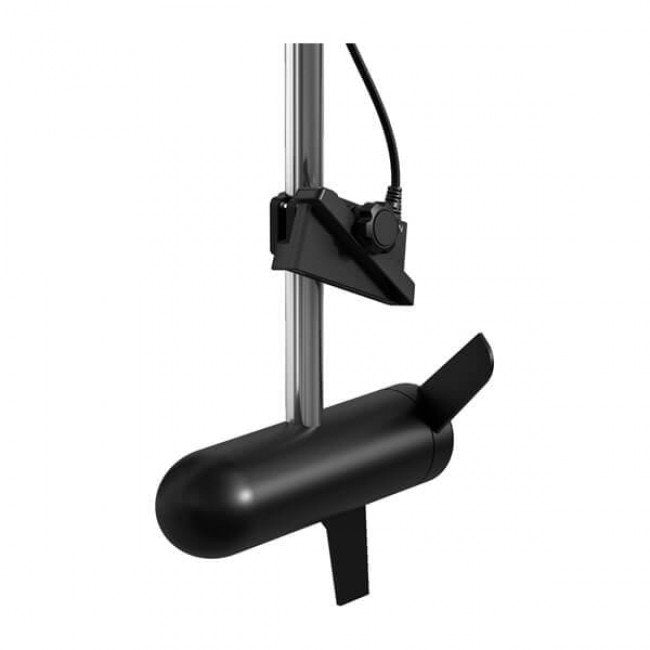

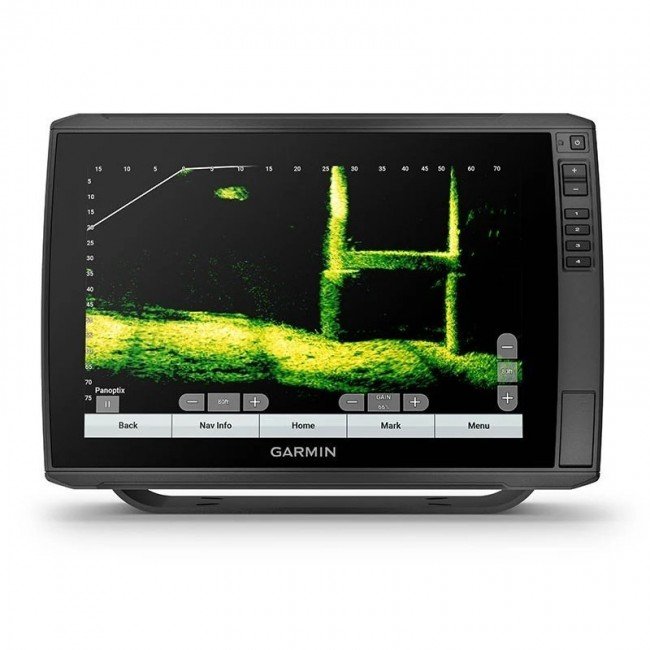

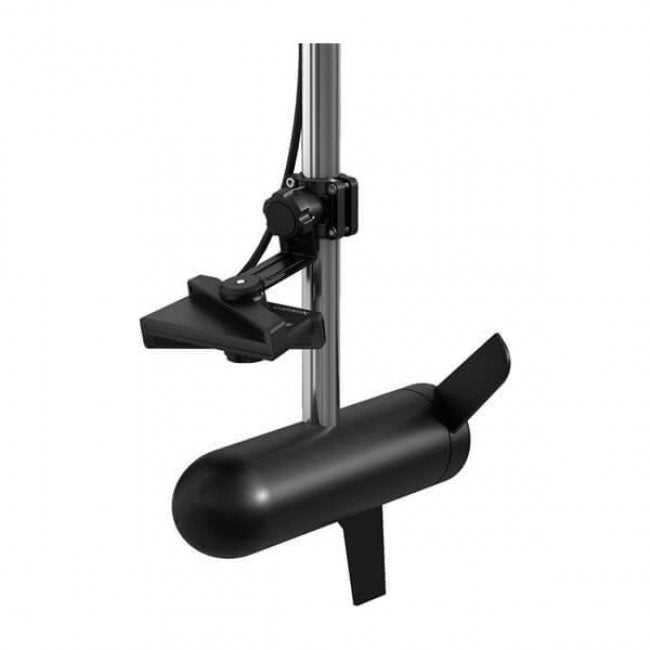

The Panoptix LiveScope system is for use with all echoMAP units (75sv PLUS and up) and all GPSMAP units as they are network capable. See highly detailed, easy-to-interpret live scanning sonar images of structure, bait and fish swimming below and around your boat in real time, even when your boat is stationary. Easily adjust the transducer to fit your fishing techniques; point forward to see around your boat, or point down to see directly below your boat. See incredibly sharp real-time scanning sonar images up to 200’ down and away. Simple plug-and-play Garmin Marine Network connector makes it easy to install and seamlessly integrate with your compatible Garmin chartplotter. Supplied with LiveScope GLS 10 sonar black box, Panoptix LVS32 transducer, Trolling motor barrel mount, Trolling motor shaft mount, Transom mount, Power cable, 2 meter Garmin marine network cable, small connector, Network adapter cable, Mounting hardware and documentation.

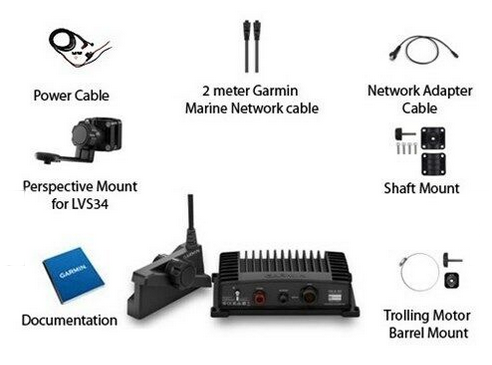

The LVS34 transducer is the updated Panoptix tech bringing even better Resolution, clarity, Target Separation as well as reducing Noise, making for an even better user experience. Real-time sonar ensures that your live images are as accurate as possible. See exactly what you need with reduced noise and fewer sonar artifacts that impede your picture of fish and structure. A built-in stabilisation system keeps the sonar image on your screen steady, even in rough conditions. You can also choose from seven vivid colour options — including Aqua, Caribbean, Lava and more — to see fish and structure in maximum contrast and clarity. Supplied with LiveScope GLS 10 sonar black box, Panoptix LVS34 transducer, Trolling motor barrel mount, Trolling motor shaft mount, Transom mount, Power cable, 2 meter Garmin marine network cable, small connector, Network adapter cable, Mounting hardware and documentation.

Suits the Lowrance Actice Target or Garmin Panoptix above. The Railblaza HEXX Live Pole 60" gives anglers an all-new way to unearth the full potential of their fishfinder. It provides seamless integration with Live Sonar Transducers, allowing you to view more action below the water in real-time. Compatible with Garmin Live Scope, Lowrance Active Target and Humminbird Mega Live, this innovative pole is lightweight, height adjustable and can be easily stowed away when not in use. The pole attaches to the deck, giving it stability and the perfect angle of aim for your transducer. Now it doesn’t matter if you’re operating on a powerboat or a kayak – you’ll always have access to the same level of detail and accuracy as HEXX has been designed with portability in mind. Plus, anglers can appreciate the soft grip handle being situated at hip level to make operation easy and comfortable. Supplied with neoprene storage bag. To watch a great 1min video on the Hexx Live Pole CLICK HERE.

This Garmin G3 Vision Blue Chart covers the whole of Australia in 3 SD cards. It suits all Garmin mapping units. It includes everything available on standard maritime paper charts plus has tidal stations, currents and shaded depth contours.

eTrex 22x takes one of the most popular and reliable GPS handhelds and makes it better. Redesigned ergonomics, an easier-to-use interface, paperless geocaching and expanded mapping capabilities add up to serious improvements for an already legendary GPS handheld. eTrex 22x is versatile. Preloaded with TopoActive maps with routable roads and trails for cycling and hiking. It’s tough and its built to handle whatever Mother Nature can dish out - and more. The eTrex 22x has an enhanced 2.2 inch 65K colour, sunlight readable display. Durable and waterproof, eTrex 22x is built to withstand the elements. It has an upgraded interface yet retains its legendary toughness to withstand the elements - be it dust, dirt, humidity or water, none of which are a match for this storied navigator. Features include 2000 waypoint storage, 200 routes, preloaded maps, 8 GB of internal memory plus a micro SD card slot, 25 hr battery life from 2 AA batteries.

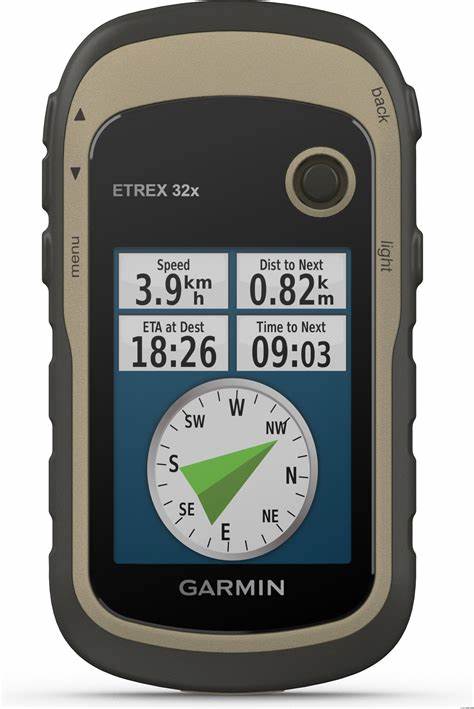

The eTrex 32x has all the same specs as the eTrex 22x above except it also has a built-in 3-axis tilt-compensated electronic compass, which shows your heading even when you're standing still, without holding it level. Also added is a barometric altimeter which tracks changes in pressure to pinpoint your precise altitude, and you even can use it to plot barometric pressure over time, which can help you keep an eye on changing weather conditions.

Mounting bracket to suit Garmin eTrex 22x and Garmin eTrex 32x hand held units.

12v Cigarette light socket power lead to suit Garmin eTrex 22x and Garmin eTrex 32x hand held units.

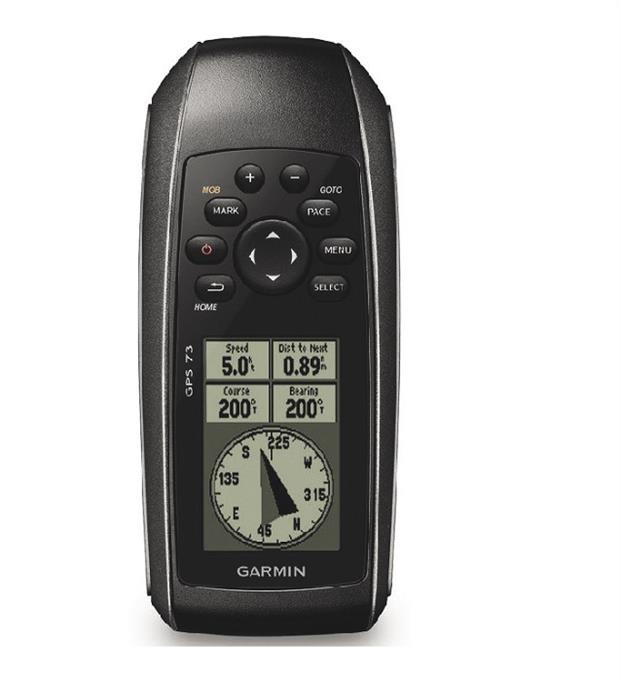

This easy-to-use handheld is the perfect navigational solution for boats, sailboats or small watercraft that do not have a chartplotter. It’s also ideal as an important emergency navigation backup for all vessels. Its high-sensitivity GPS marks and stores 1,000 waypoints and 100 tracks so you can navigate right back to them. Use on land or water — it floats! Features SailAssist, including virtual starting line, heading line, countdown timers and tack assist. GPS 73 has an intuitive user interface with dedicated back-lit buttons for quick and easy operation. Its high-contrast display makes it easy to read in all lighting conditions.

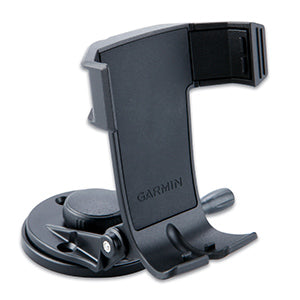

Mounting bracket to suit Garmin GPS73 hand held unit.

12v Cigarette light socket power lead to suit Garmin GPS73 hand held unit.

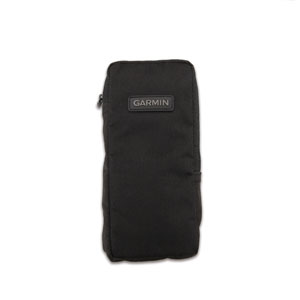

Cover to suit Garmin GPS73 hand held unit.

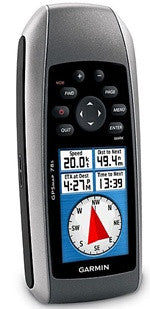

For boaters and water sports enthusiasts who want to run with the best, the rugged GPSMAP78s features crisp colour mapping, high sensitivity receiver, new moulded rubber side grips, plus a micro SD card slot for loading additional maps. And it floats. With its high sensitivity WAAS enabled GPS, the GPSMAP 78s locates your position quickly and precisely and maintains its GPS location even in heavy cover and deep canyons. The advantage is clear – whether you are deep in the bush or just near tall buildings and trees, you can count on the 78s to help you find your way out when you need it the most. Other featurers include a 160H by 240V pixel waterproof screen, 20 hr battery life from 2 AA batteries, 2000 waypoint storage with up to 200 routes, 1.7GB built in memory, electronic compass, barometric altimeter, hunt/fish calendar and tide tables.

GPSMAP 78sc has all the same specs and cababilities of the 78s above except it comes with built-in coastal charts and a worldwide basemap with imagery perfect for all your outdoor pursuits. Map detail includes shorelines, depth contours, navigation markers, harbours, marinas and more for Australia and New Zealand. And, like the rest of the 78-series, 78sc is waterproof and even floats in water.

Mounting bracket to suit Garmin GPSMAP78s and GPSMAP78sc hand held units.

12v Cigarette light socket power lead to suit Garmin GPSMAP78s and Garmin GPSMAP78sc hand held units.

Cover to suit Garmin GPSMAP78s and GPSMAP78sc hand held units.
