Raymarine

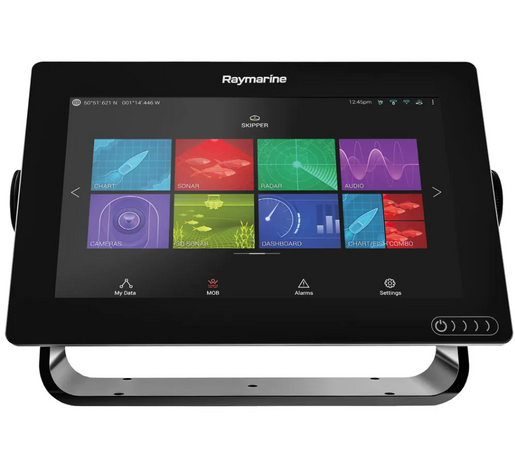

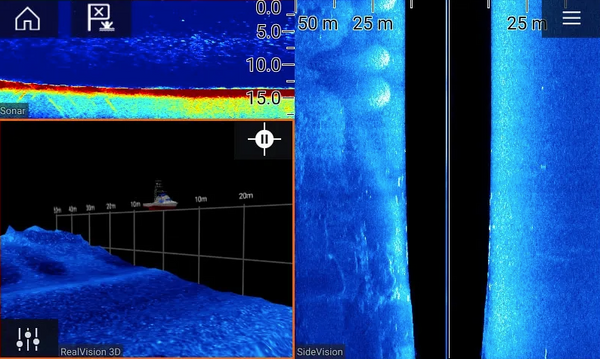

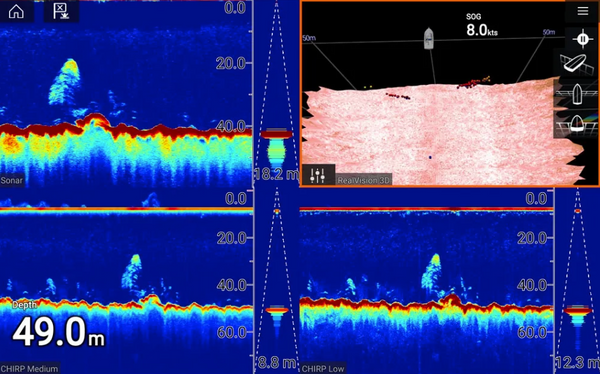

Price includes 600W transducer as well as Mapping card.  Raymarine Axiom 7 RealVision Multifunction Display is a powerful new Navigation system, delivering exceptional fish-finding performance. Complete with built-in RealVision 3D Sonar, all new LightHouse 3 operating system and fast quad core processor, Axiom puts you in complete control. RealVision 3D is an all-in-one Transducer that combines CHIRP DownVision, SideVision, High Frequency CHIRP, and RealVision 3D – giving you the ability to see what’s below, behind, and to the sides of the Boat, all at once and in 3D. You can pan, tilt and zoom the 3D image to examine from any angle. Additionally, Raymarine’s gyro-stabilized Sonar technology compensates for Boat movement.

Axiom is expandable, so its capabilities can grow as needed. It supports the full range of Raymarine accessories, including Quantum radar, CHIRP Sonar, FLIR thermal cameras, audio integration, instruments, cameras, and Evolution autopilot. Standard Wi-Fi and Bluetooth connectivity allows connection to the latest Raymarine apps for tablets and smartphones.

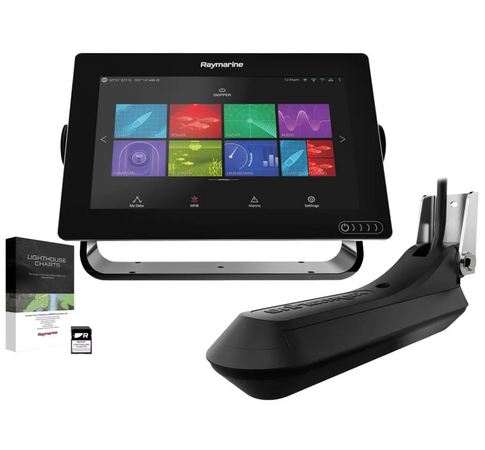

Price includes 600W transducer as well as Mapping card.  The Axion 9" has all the same specifications and features as the 7" above except it has a 9.0" Optically Bonded LCD display with a 800 x 480 WVGA resolution. Like the 7" it can be bracket or flush mounted. Other notable features include: Usable Depth: 274m CHIRP, 150m+ DownVision, Operating Frequency: 50kHz/200kHz (600W Sonar), WiFi, Ethernet, Bluetooth and Radar capable, 10,000 Waypoints with 150 routes, 10,000 max track points with 16 tracks, NMEA 0183 and NMEA 2000 compatible, SeaTalk compatible - requires A06045 DeviceNet female adapter cable, 1 video input, up to 10 IP cameras, 1 MicroSD slot - up to 32GB, 4GB solid state internal memory and AIS capability.

The Raymarine RS150 GPS Antenna is a high performance, 72-channel, remotely mounted GPS sensor for Raymarine Navigation systems. The RS150 offers fast 10Hz position updates and enhanced accuracy. It is also a GNSS Receiver and supports the GLONASS global Navigation satellite system.

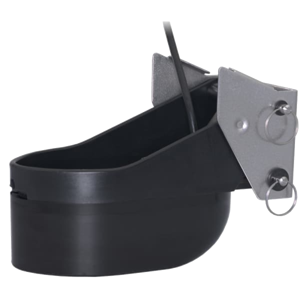

The TM265LM, Chirp-ready transom mount is a perfect mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths.

The low-frequency band of 42 to 65 kHz provides deep-water performance down to 914 m (3000'). It is a good choice when scouting an area or fishing in deeper depths. The medium frequency from 85 to 135 kHz is excellent for identifying targets suspended close to the bottom, on structure, and within the water column.

The Airmar XSONIC TM265LH 1KW Chirp Simrad/Lowrance Transducer delivers excellent resolution, bottom discrimination and bait and game fish separation at all depths.  The TM265LH has both a seven element low frequency (42 and 65hz) for deep water performance and a high frequency of between 130 and 210kHz with a narrow beamwidth perfect for showing structure / fishing holding tight to that structure.
